Description

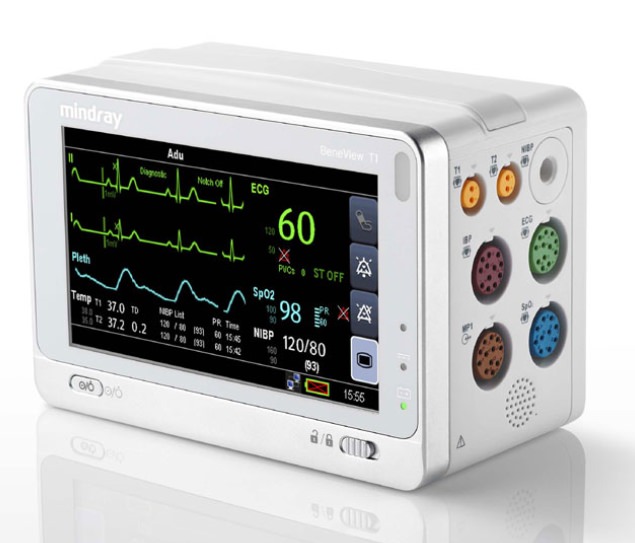

Patient Monitor Mindray T1
Compact, lightweight (2.0 lbs)
5.5″ capacitive touchscreen display with smartphone-like, multi-gesture control
Innovative design eliminates difficult-to-clean seams and gaps
Consistent intuitive user interface across N-Series platform
Supports display of up to 6 waveforms
Comprehensive standard measurements include 3, 5, 6-lead ECG, Masimo RD SET® SpO2, 2 IBP, NIBP, respiration, and 2 temperatures
Arrhythmia analysis and atrial fibrillation (Afib) detection. Optional ST analysis and QT/QTc interval monitoring.
Extensive data storage plus up to 48 hours of full disclosure
Serves as the core parameter module for N-Series monitors
Flexible transport solution with optional integrated or modular CO2
IP44 grade particle and water resistant
1.2 m drop test endurance
Multiple mounting solutions including transport module rack with bedrail hooks
Standard 2.4/5 GHz dual band wireless communication
Defibrillator synchronization
Battery run time of 8 hours (without integrated CO2)
French version
OEM Part# 9283F-PA00078
