Description

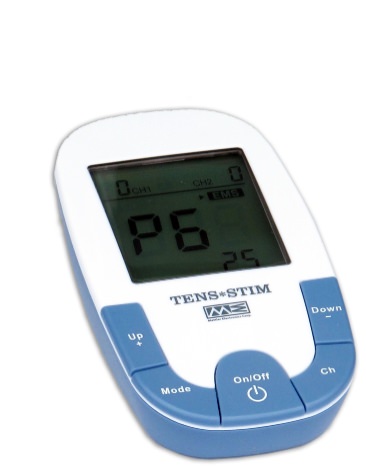

The ME 211 is a two channel digital TENS/EMS device. The large LCD display is easy to see from any angle and provides a visual for operation modes, treatment time and output. The 211 uses 3 AAA batteries (included with unit). The TENS mode provides 8 preset programs and the EMS mode provides 6 preset programs that are created for specific patient conditions. Timer is adjustable from 5-60 minutes. The 211 comes with a protective cover that can attach to a belt or waistband for portable movement.
- Channels: Two, isolated, independently controlled
- Output Current: Adjustable 0 – 80mA peak into 500Ω load each channel –
- RMSV at 3.5 V (max.), RMSA at 1.3mA (max.)
- Max Charge per Pulse: 20.8 micro-coulombs maximum
- Timer*: 5~60 min. selectable
- Battery: 3 x AAA (1.5 V) batteries for a total of 4.5 V
- Weight: 2.6 oz. (batteries included)
- Dimensions: 3.5 in, (H) x 2.1 in. (W) x 0.8 in. (T)
- LCD: Shows modes, pulse rate, pulse width, timer, CH1/CH2, intensity level
- Wave Form: Symmetrical Bi-Phasic square pulse
- Pulse Rate: As pre-programming operation mode
- Pulse Width: As pre-programming operation mode
- Operating Conditions: 50°F (10°C) to 104° (40°C), 40-90% max. Relative humidity
- Transportation & Storage Condition: 14°F (-10°C) to 140° (60°C), 30-95% max. Relative humidity
Includes:
- carry pouch
- Pack of 2″ square V-Trodes
- 2 lead wires
- 3-AAA batteries
- Protective cover
- Instruction manual.
OEM Part# ME 211
