Description

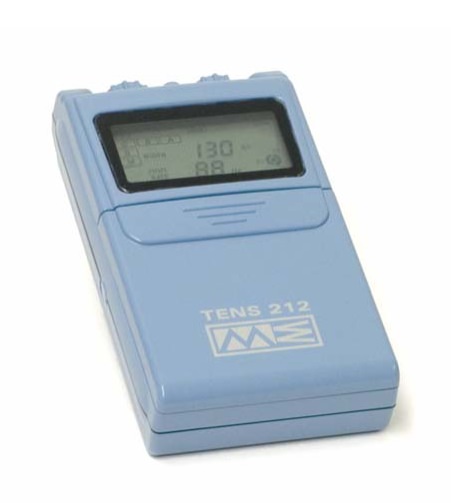

The TENS 212 is a two channel digital TENS device that provides continuous, modulated and burst modes. Pulse frequency and width may be set independently. The large LCD display is easy to see from any angle and provides a visual of all your waveform parameters.
Channel: Dual, isolated between channels
Pulse intensity: Adjustable 0-80 mA peak into 500 Ω load each channel, constant current
Pulse Rate: 1Hz-160 Hz (adjustable), 1Hz/step (1-20 Hz), 5Hz / step (20-160 Hz)
Pulse Width: 50 μs – 260 μs (adjustable), 10 μs/steps
Patient Compliance
meter:
Shows the treatment times in hours.
Timer: 15, 30, 60 minutes and continuous mode
LCD: Shows modes, pulse rate (frequency), pulse width, timer, CH1/CH2
Functions:
- Burst: Cycle Bursts, 2 Bursts/sec, 9 pulses / Burst, 100 Hz, width is adjustable.
- Continuous mode. Pulse rate, pulse width and intensity are adjustable.
- Modulated Width. Pulse width is automatically varied in an interval of 6 seconds. The
modulation range of pulse width is from setting value to 35% less than the control setting
value, then returns to the setting value. Rate, width and intensity are fully adjustable. - Wave form: Asymmetrical Biphasic square pulse
- Voltage: 0-110 Volts (Open Circuit)
- Max charge per pulse: 21 micro-coulombs
- Power Source: 9-Volt Battery
- Dimensions: 4.25″ (H) × 2.4″ (W) × 1″ (T), (108 mm (H) ×61.5 mm (W) ×25 mm (T))
- Weight: 5 oz. (140 grams), battery included
- All electrical specifications are ±10% 500 Ω load
Comes with:
- carrying case
- set of four V-Trode™ self-adhesive electrodes
- 9 volt battery
- Instructions Manual.
OEM Part# ME 212
