Description

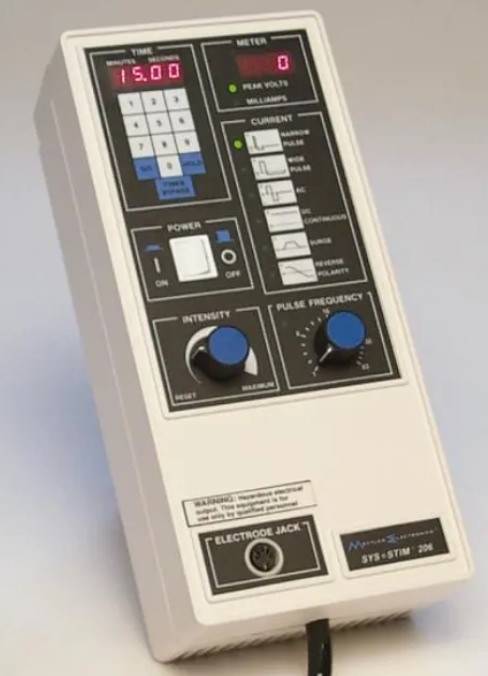

The Sys*Stim 206 is a one-channel neuromuscular stimulator that features four different waveforms in a light-weight package. The narrow pulse is suited for TENS while the wide and AC pulses can be used for muscle stimulation. Direct Current can be used to stimulate denervated muscles or perform iontophoresis. The Sys*Stim 206 is an ideal companion to the Sonicator 716 for combination therapy.
Output Specifications:
Channels: One
Waveforms: Asymmetrical biphasic with zero net DC (Narrow and Wide pulses)
Symmetrical biphasic with zero net DC (AC pulse)
Continuous Direct Current
Voltage: 0 TO 102 VDC
Current: 30 mA max., DC Continuous
100 mA peak, Narrow Pulse, Wide and AC pulses
Phase Duration:
Narrow Pulse
Wide Pulse
AC
100 μs followed by 400 μs at ¼ amplitude
300 μs followed by 1200 μs at ¼ amplitude
300 μs in each direction
Frequency: Pulse Mode: 1-83 Hz
Surge Cycle: 6 seconds On and 18 seconds Off with 3 second Up and Down ramps.
Pulse frequency set to either 35 or 83 Hz.
OEM Part# ME 206
